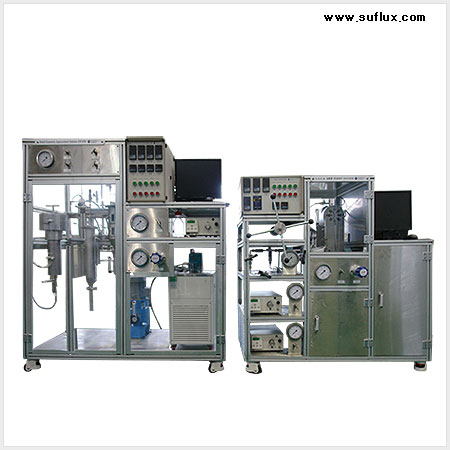

SCP 05 series is for laboratory using characteristics of the solute dissolved in the supercritical fluid deposition of nano-sized particles. A small amount of nano-particles in supercritical reaction can be performed and reactor is made with a capacity of less than500ml. Nano-particles are produced according to characteristics of the solvent and solute and temperature & pressure for supercritical carbon dioxide can be controlled precisely.
ILSHIN AUTOCLAVE is specialized in manufacturing SCP 05 series with patents and know-how. Pressure vessels for extraction and separation, storage are designed based on ASME. It maintains precise temperature by inside electric oven and the nanoparticles supercritical process is performed with back pressure regulator and special components such as nanoparticles nozzle. |
|
| |
|
| |
 Dimension |
| Nano Particle Product Type |
SAS(Supercritical Anil-Solvent) |
| Extraction Vessel |
0.5ℓ x 1 set
Max. Working Condition : 350㎏/㎠ at 80℃ |
| Separate Vessel |
0.2ℓ x 1 set |
| CO2 High Pressure Pump |
Max. Flow Rate : 24㎖/min |
| Co-Solvent Pump & System |
Max. Flow Rate : 12㎖/min |
| Temperature Utility |
Heating Oven System |
|
| |
| Feature of SCP 05 |
| Safety |
• Design based on ASME
• Certified by KGS, KOSHA
• Safety device
• Convenience maintenance through the alarm list |
| Convenience |
• Minimized size for a variety of installation.
• Easy to manage the control system.
• Easy for assembly and disassembly. |
| Control system |
• Touch screen to control & monitor
• DAQ and Auto system control |
|
| |
| Process variables of supercritical CO equipment |
| Temperature |
| • Stability by circulating system of heating carrier |
| Pressure |
| • Accuracy 1.5% by controlling back pressure regulator |
| TEST |
• Available test of a variety of method for producing nano-particles.
• Available to produce nano-partcle with a variety of method depending on solute. |
|
| |
| Specification |
| * SCP 03 Series |
| Series |
Extractor Volume |
Raw Material
Phase
|
Pressure |
Temperature |
| SCP03-S-350 |
0.3ℓ |
SAS |
350 ㎏/㎠ |
80 ℃ |
| SCP03-S-600 |
0.3ℓ |
SAS |
600 ㎏/㎠ |
80 ℃ |
| SCP03-R-350 |
0.3ℓ |
RESS |
350 ㎏/㎠ |
80 ℃ |
| SCP03-R-600 |
0.3ℓ |
RESS |
600 ㎏/㎠ |
80 ℃ |
| SCP03-P-350 |
0.3ℓ |
PGSS |
350 ㎏/㎠ |
80 ℃ |
| SCP03-P-600 |
0.3ℓ |
PGSS |
600 ㎏/㎠ |
80 ℃ |
|
| |
| * SCP 05 Series |
| Series |
Extractor Volume |
Raw Material
Phase
|
Pressure |
Temperature |
| SCP05-S-350 |
0.5ℓ |
SAS |
350 ㎏/㎠ |
80 ℃ |
| SCP05-S-600 |
0.5ℓ |
SAS |
600 ㎏/㎠ |
80 ℃ |
| SCP05-R-350 |
0.5ℓ |
RESS |
350 ㎏/㎠ |
80 ℃ |
| SCP05-R-600 |
0.5ℓ |
RESS |
600 ㎏/㎠ |
80 ℃ |
| SCP05-P-350 |
0.5ℓ |
PGSS |
350 ㎏/㎠ |
80 ℃ |
| SCP05-P-600 |
0.5ℓ |
PGSS |
600 ㎏/㎠ |
80 ℃ |
|
| * Available in a variety of material |
| Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
