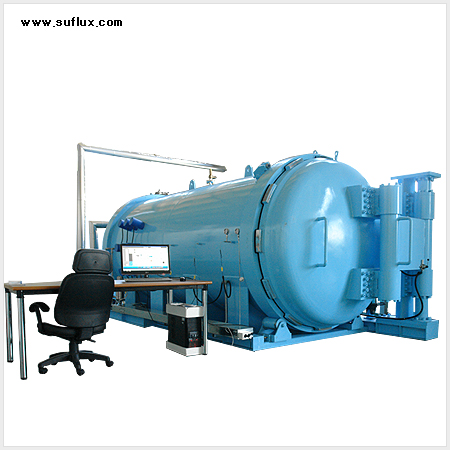

GA 3000 is used for glass laminating of large glass, car safety glass, large LCD/PDP and many more applications.
Large work space and pressure control system of GA 3000 enable many different types of sample testing and production.
GA 3000 controls temperature and pressure to make adhesive ductile.
GA 3000 is basically made from stainless steel for chemical resistance, and installed automatic opening / closing cover. It uses multi-line pressure system for safety and accurate air tightness during process.
Pipe line consists of air pump, air vent, safety vent and thermocouple. Additional options are also available such as cooling coil for rapid cooling and automatic emission line for constant temperature and pressure. |
|
|
| |
 Dimension |
| Working
Vessel Dia |
Ф3,000 ㎜ x 4,800 ㎜ |
| Working Temperature |
~ 150 ℃ |
| Working
Pressure |
~ 10 ㎏/㎠ |
| Temp.
& Pressure Deviation |
±1.5 (%) |
| Motor Rotational Speed |
~1,750 rpm |
| Dimension |
4,200 (W) X 10,500 (D) X 3,500(H) |
|
| |
| Features of GA 3000 |
| Safety |
• Design and manufacture according to ASME pressure vessel standard
• Design and manufacture according to KGS & KOSHA
• Safety and accuracy by multi control system for pressure.
• Continuous equipment management by alarm list record.
• Convenient interlock system and automatic opening / closing by the equipment weight |
| Convenience |
• Control system controls all operations after material injection
• Convenient cleaning by easy assembly / disassembly |
| Control system |
• Convenient touch screen
• Accurate testing by automatic system |
 |
|
| |
| Process Variable of autoclave |
| Constant Temperature |
| • Minimize temperature departure by circulation fan. |
| Pressure Accuracy |
| •
Automatic valve line minimize pressure departure within 1.5% |
| Calculating an output |
• Calculate an amount of material at a time(product size / interior space)
• Calculate temperature, pressure and process time. |
|
| |
| Specification |
| * GA 3000 - 350 Series |
| Series |
Working Vessel
Internal Diameter |
Working Vessel
Distance
|
Temperature |
Pressure |
| GA3000-350L |
3,000
㎜ |
3,500
㎜ |
150 ℃ |
9 ㎏/㎠ |
| GA3000-350H |
3,000
㎜ |
3,500
㎜ |
150 ℃ |
20
㎏/㎠ |
|
| |
| * GA 3000 - 400 Series |
| Series |
Working Vessel
Internal Diameter |
Working Vessel
Distance
|
Temperature |
Pressure |
| GA3000-400L |
3,000
㎜ |
4,000
㎜ |
150 ℃ |
9 ㎏/㎠ |
| GA3000-400H |
3,000
㎜ |
4,000
㎜ |
150 ℃ |
20
㎏/㎠ |
|
| |
| * GA 3000 - 500 Series |
| Series |
Working Vessel
Internal Diameter |
Working Vessel
Distance
|
Temperature |
Pressure |
| GA3000-500L |
3,000
㎜ |
5,000
㎜ |
150 ℃ |
9 ㎏/㎠ |
| GA3000-500H |
3,000
㎜ |
5,000
㎜ |
150 ℃ |
20
㎏/㎠ |
|
* Design and manufacture according to ASME, KGS and KOSHA
* Additional options are available such as sample tray and cart
|
| ※ Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
| |
