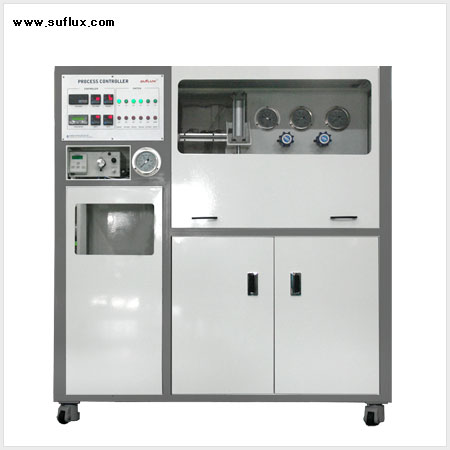

| SCDB 05 Series is a reactor for debinding through supercritical CO2. The reactor capacity is less than 500ml. Ilshin Autoclave Co.,Ltd obtained several patents about supercritical CO2 extraction method. In addition to many years experiences and all the design conforming with ASME CODE, that ensures the safety.
The reactor cover is quick clamp type that can open and close easily. Equipment is also consist of several optimum components such as freezer, heat exchanging tank, pressure regulator. |
|
| |
|
| |
 Dimension |
| Extraction Vessel |
0.5 ℓ x 1 set
Max. Working Condition : 350 ㎏/㎠ at 70 ℃ |
| Separate Vessel |
0.3 ℓ x 2 set |
| CO2 Storage Vessel |
0.5 ℓ x 1 set |
| CO2 High Pressure Pump |
Max. Flow Rate : 100㎖/min |
| Co-Solvent Pump & System |
Max. Flow Rate : 12㎖/min |
| Recycle System |
Filtering Vessel System |
| Temperature Utility |
Chiller & Heating Bath System |
| Control System |
Touch Panel Type |
| Structure |
Packing Type |
|
| |
| Features of SCDB 05 |
| Safety |
• Design based on ASME
• Certified by KGS, KOSHA
• Safety device
• Convenience maintenance through the alarm list |
| Convenience |
• Easily to close by quick clamp type for high pressure
• Convenience to check operational status by measuring instrument
• Easy for assembly and disassembly |
| Control system |
• Touch screen to control & monitor
• DAQ and Auto system control |
|
| |
| Process variables |
| Temperature |
• Stability by circulating system of heating carrier
• Cooling and heating graded control |
| Pressure |
• Accuracy 1.5% by controlling back pressure regulator
• Accurate back pressure regulator |
| TEST |
| • Various test according to different test materials |
|
| |
| Specification |
| * SCDB 03 Series |
| Series |
Reactor Volume |
Reactor Quantity |
Pressure |
Temperature |
| SCDB03-3501 |
0.3ℓ |
x 1 set |
350 ㎏/㎠ |
80 ℃ |
| SCDB03-3502 |
0.3ℓ |
x 2 set |
350 ㎏/㎠ |
80 ℃ |
| SCDB03-6001 |
0.3ℓ |
x 1 set |
600 ㎏/㎠ |
80 ℃ |
| SCDB03-6002 |
0.3ℓ |
x 2 set |
600 ㎏/㎠ |
80 ℃ |
|
| |
| * SCDB 05 Series |
| Series |
Reactor Volume |
Reactor Quantity |
Pressure |
Temperature |
| SCDB05-3501 |
0.5ℓ |
x 1 set |
350 ㎏/㎠ |
80 ℃ |
| SCDB05-3502 |
0.5ℓ |
x 2 set |
350 ㎏/㎠ |
80 ℃ |
| SCDB05-6001 |
0.5ℓ |
x 1 set |
600 ㎏/㎠ |
80 ℃ |
| SCDB05-6002 |
0.5ℓ |
x 2 set |
600 ㎏/㎠ |
80 ℃ |
|
* Obtained safety certification
* Different material is possible
* Opening type structure or Closed type is selectable |
| Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
