MDD 800 uses coupling instead of belt to connect motor and Magnedrive directly. There are few noise and vibration due to simple components and the housing is made from anodized aluminum for corrosion resistance. There is protection cover to protect against impacts. Shaft and bearing are made from SUS, Ni, Ti for corrosion resistance, heat resistance and durability. Neodymium magnet ensures stirring for high viscosity as well as low viscosity.
There are Thread type and Flange type for coupling with reactor. We installed cooling jacket in the housing for cooling by air/water so stable stirring in constant speed and power despite high temperature.
MDD 800 is especially useful for chemical production or synthesis process in certain condition.

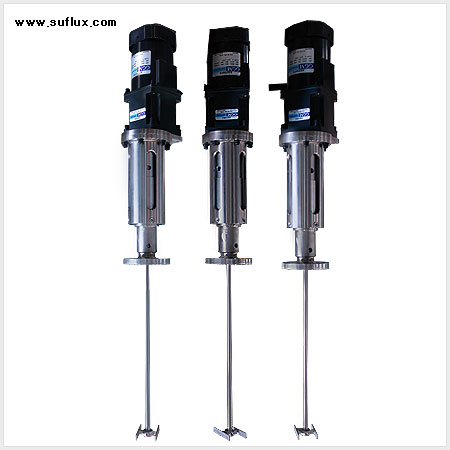

MDD 800 (Thread Type)
MDD 800 (Bolt Type)
Dimension (Thread Type)
Shaft
Dia
A
B
C
Thread
Cooling
Port
ø 5
110
535
110
M 24
1/8
Dimension (Bolt Type)
Shaft
Dia
A
B
C
Bolt
Cooling
Port
ø 5
160
553
180
M10
Bolt
Air Cooling
Features of MDD 800
Convenience and Silence
• Easy installation and operation and convenient repair and replacement due to simple components
• Easy RPM controlling by motor
• Ensure accurate power transfer by belt
• Few noise, vibration and dust
Utilization
• Applicable for low viscosity and high viscosity by various models and specification
• Stirring for diffusion and dispersion of fluid(gas/liquid) in high pressure and temperature
• Customer can choose connection type between Thread type / Bolt type and apply sealing type between Gasket / O-ring.
• Manufacture for lab scale as well as plant scale
• Available in clean room because of direct motor connection.
• Applicable in small workspace due to compact size.
Durability
• Less damage by bearing due to direct motor connection
• Long time operating due to high durability and corrosion resistance
• Available in high temperature (Max. 330℃)
• Installed cooling jacket to prevent deterioration by high temperature.
Specification
* MDD 800 TH Series
Model
Pressure
Shaft
Dia
Capacity
Max.
Temp.
Torque
Type
MDD800- 5 TH
8,000 psi
φ 5
0.3 ~ 1,000ℓ
330 ℃
(Cooling
Jacket )
5 ㎏/㎠
Thread Type
* MDD 800 BT Series
Model
Pressure
Shaft
Dia
Capacity
Max.
Temp.
Torque
Type
MDD800-5 BT
8,000 psi
φ 5
0.3 ~ 1,000ℓ
330 ℃
(Cooling
Jacket )
5 ㎏/㎠
Bolt Type
※ Please contact our sales team to inquire about other specification
