Home > System > Agiator > MDB series > MDB 800

Agitator

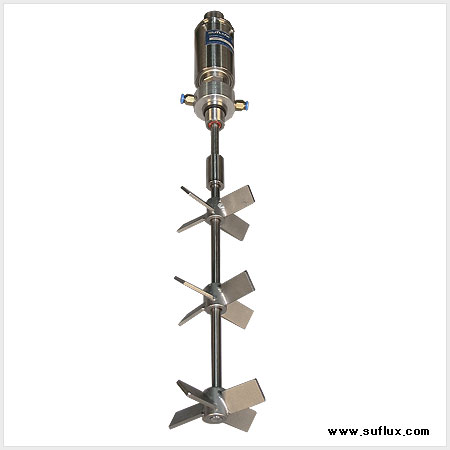

MDB series - MDB 800
  PRINT

    Overview   MDB 100   MDB 300   MDB 500   MDB 800

MDB 800 uses Urethane O-ring, Mastar Wege V-belt and timing belt to connect to the housing of motor. The housing is anodized aluminum which has corrosion resistance. Shaft, Bearing and other components are made from SUS, Ni, or Ti. Neodymium magnet of MDB 100 enables constant torque and stirring for low viscosity and high viscosity. There are Thread type and Flange type for coupling with reactor. We installed cooling jacket in the housing for cooling by air/water so stable stirring in constant speed and power despite high temperature.


Please refer to Options & Accessoriesfor many other options.

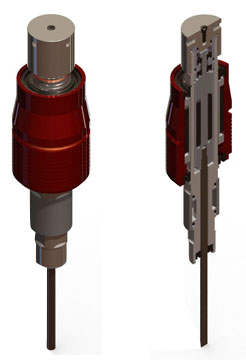

MDB 800 (Thread Type)

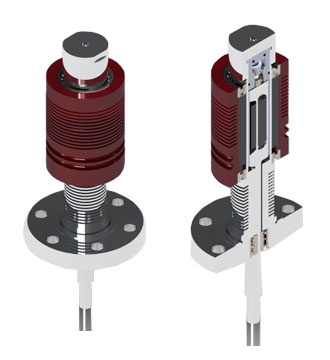

MDB 800 (Flange Type)

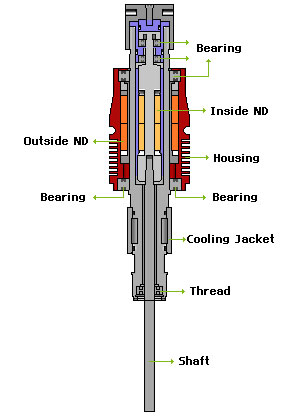

Dimension (Thread Type)
Shaft
Dia
A B C D Thread Cooling
Port
Φ5 60 228 135 62 M18 x 1.5P Φ6

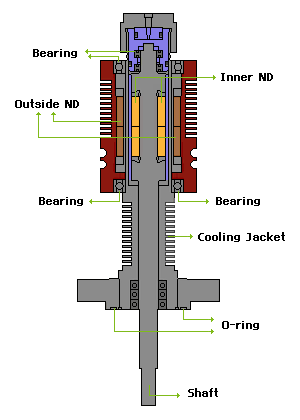

Dimension (Flange Type)
Shaft
Dia
A B C D Flange Cooling
Port
Φ5 50 215 102 38 PCD25 (4EA-Φ4.5) Φ6

Features of MDB 800
Convenience and Silence
• Easy installation and operation and convenient repair and replacement due to simple components
• Easy RPM controlling by motor
• Ensure accurate power transfer by belt
• Few noise, vibration and dust
Utilization
• Applicable for low viscosity and high viscosity by various models and specification
• Stirring for diffusion and dispersion of fluid(gas/liquid) in high pressure and temperature
• Manufacture for lab scale as well as plant scale
Durability
• Long time operating due to high durability and corrosion resistance
• Available in high temperature (Max. 330℃)
• Installed cooling jacket to prevent deterioration due to high temperature.

Specification
* MDB 800 TH Series
Model Pressure Shaft
Dia
Capacity Max.
Temp.
Torque Type
MDB800-5 THI 8,000 psi φ 5 0.3 ~ 1,000ℓ 330 ℃
(Cooling
Jacket)
5 ㎏/㎠ Thread Type

* MDB 800 FL Series
Model Pressure Shaft
Dia
Capacity Max.
Temp.
Torque Type
MDB800-5 FLI 8,000 psi φ 5 0.3 ~ 1,000ℓ 330 ℃
(Cooling
Jacket )
5 ㎏/㎠ Flange Type

※ Please contact our sales team to inquire about other specification
  Technical sales team : +82-42-931-6100 (ext. 1)
