MDB 100 uses Urethane O-ring, Mastar Wege V-belt and timing belt to connect to the housing of motor. The housing is anodized aluminum which has corrosion resistance. Shaft, Bearing and other components are made from SUS, Ni, or Ti. Neodymium magnet of MDB 100 enables constant torque and stirring for low viscosity and high viscosity. There are Thread type and Flange type for coupling with reactor. We installed cooling jacket in the housing for cooling by air/water so stable stirring in constant speed and power despite high temperature.
Please refer to Options & Accessories for many other options. |
|
| |
|
| |
 MDB 100 (Thread Type) |
|
| |

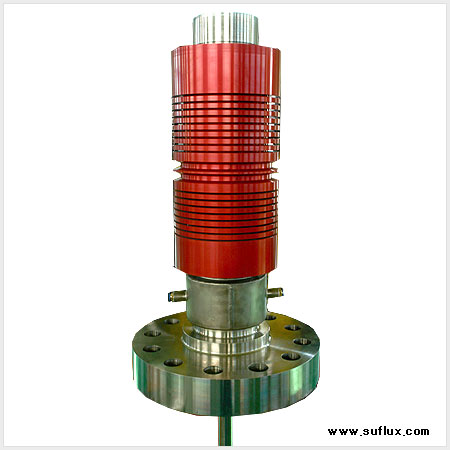

| MDB 100 (Flange Type) |
|
| |
| Dimension (Thread Type) |
 |
Shaft
Dia |
A |
B |
C |
D |
Thread |
Cooling
Port |
| Φ5 |
60 |
228 |
135 |
62 |
M18 x 1.5P |
Φ6 |
| Φ10 |
80 |
281 |
165 |
67 |
M33 x 2P |
Φ6 |
| Φ15 |
95 |
337 |
208 |
69 |
M40 x 1.5P |
Φ6 |
| Φ20 |
95 |
347 |
208 |
71 |
M45 x 2P |
Φ6 |
| Φ25 |
60 |
347 |
248 |
75 |
M45 x 2P |
Φ6 |
| Φ30 |
70 |
402 |
248 |
79 |
M48 x 3P |
Φ6 |
| Φ40 |
85 |
402 |
295 |
82 |
M56 x 3P |
Φ6 |
| Φ50 |
95 |
461 |
295 |
85 |
M72 x 3P |
Φ6 |
|
|
| |
| Dimension (Flange Type) |
 |
Shaft
Dia |
A |
B |
C |
D |
Flange |
Cooling
Port |
| Φ5 |
50 |
215 |
102 |
38 |
PCD25
(4EA-Φ4.5) |
Φ6 |
| Φ10 |
70 |
275 |
102 |
45 |
PCD60
(6EA-Φ7) |
Φ6 |
| Φ15 |
90 |
327 |
176 |
53 |
PCD80
(6EA-Φ9) |
Φ6 |
| Φ20 |
90 |
341 |
176 |
53 |
PCD90
(6EA-Φ11) |
Φ6 |
| Φ25 |
115 |
341 |
214 |
68 |
PCD110
(6EA-Φ13) |
Φ6 |
| Φ30 |
115 |
364 |
196 |
68 |
PCD110
(6EA-Φ13) |
Φ6 |
| Φ40 |
235 |
860 |
534 |
205 |
PCD305
(10EA-Φ37) |
Φ6 |
| Φ50 |
235 |
982 |
554 |
173 |
PCD305
(10EA-Φ25) |
Φ6 |
|
|
| |
| Features of MDB 100 |
| Convenience and Silence |
• Easy installation and operation and convenient repair and replacement due to simple components
• Easy RPM controlling by motor
• Ensure accurate power transfer by belt
• Few noise, vibration and dust |
| Utilization |
• Applicable for low viscosity and high viscosity by various models and specification
• Stirring for diffusion and dispersion of fluid(gas/liquid) in high pressure and temperature
• Manufacture for lab scale as well as plant scale |
| Durability |
• Long time operating due to high durability and corrosion resistance
• Available in high temperature (Max. 330℃)
• Installed cooling jacket to prevent deterioration due to high temperature. |
|
| |
| Specification |
| * MDB 100 TH Series |
| Model |
Pressure |
Shaft
Dia |
Capacity |
Max.
Temp. |
Torque |
Type |
| MDB100-5 THI |
1,000 psi |
φ 5 |
0.3 ~ 1,000ℓ |
330 ℃
|
5 ㎏/㎠ |
Thread Type |
| MDB100-10 THL |
1,000 psi |
φ 10 |
10 ㎏/㎠ |
| MDB100-20 THS |
1,000 psi |
φ 20 |
40 ㎏/㎠ |
| MDB100-30 THH |
1,000 psi |
φ 30 |
120 ㎏/㎠ |
| MDB100-40 THI |
1,000 psi |
φ 40 |
410 ㎏/㎠ |
| MDB100-50 THN |
1,000 psi |
φ 50 |
620 ㎏/㎠ |
|
| * Please consult with sales team about high temperature specification more than 330℃ |
| * MDB 100 FL Series |
| Model |
Pressure |
Shaft
Dia |
Capacity |
Max.
Temp. |
Torque |
Type |
| MDB100-5 FLI |
1,000 psi |
φ 5 |
0.3 ~ 1,000ℓ |
330 ℃
|
5 ㎏/㎠ |
Flange Type |
| MDB100-10 FLL |
1,000 psi |
φ 10 |
10 ㎏/㎠ |
| MDB100-20 FLS |
1,000 psi |
φ 20 |
40 ㎏/㎠ |
| MDB100-30 FLH |
1,000 psi |
φ 30 |
120 ㎏/㎠ |
| MDB100-40 FLI |
1,000 psi |
φ 40 |
410 ㎏/㎠ |
| MDB100-50 FLN |
1,000 psi |
φ 50 |
620 ㎏/㎠ |
|
| * Please consult with sales team about high temperature specification more than 330℃ |
| ※ Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (ext. 1) |
|
|
| |
