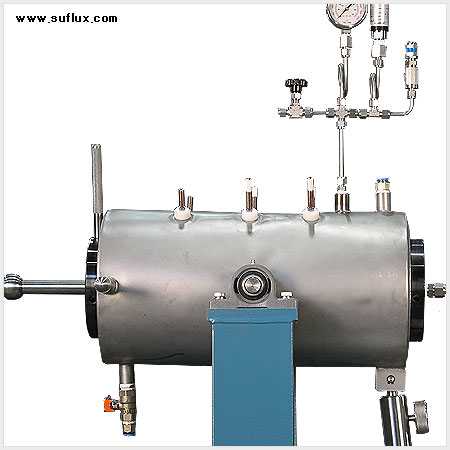

| SHS 50 is 50ℓ (or more) reactor, suitable for SHS of plenty of materials. Terminal for electricity supply is connected to inside the reactor for self-propagating and sight glass is installed to the reactor. There is a vacuum line for optimum condition. This system facilitates self-propagating synthesis for various compounds of materials.
SHS 50 is made from stainless steel or carbon steel. Nozzle basically consists of injection line, emission line, safe vent and thermocouple. Magnetic bar and there are multiple options such as deep tube for gas injection during the process, and cooling coil for rapid cooling.
|
|
| |
|
| |
 Dimension |
| Working Capacity |
50ℓ (Inside size :
φ
393.6 ㎜ X 875 ㎜) |
| Working Temp. |
~ 100 ℃ |
| Working Pressure |
200 ㎏/㎠ |
| Process Type |
Double door / Rotation type |
| Material |
SUS304 / SNCM439 |
| Main Seal |
O-ring Seal |
| Closure Type |
Double Ended Screw |
* Main Reactor
* Powder Basket/ Electric Connector - 1set
*
Vacuum Pump/ Line - 1set |
|
| |
| Features or SHS50 |
| Safety |
• Design and manufacture according to ASME U1, U2 pressure vessel standard
• Safety and accuracy by double control system for pressure.
• Assure safety and accuracy by double pressure control system.
• Continuous equipment management by alarm list record. |
| Convenience |
• Large workspace is compatible with various environmental conditions.
• Control system controls all operations after putting material.
• Convenient cleaning by easy assembly / disassembly |
| Control System |
• Convenient touch screen
• Accurate testing by automatic system |
 |
|
| |
| Specification |
| * SHS 50 Series |
| Series |
Liner Type |
Temperature |
Pressure |
View Zone |
Material |
| SHR 50-1001 |
50ℓ |
100 ℃ |
200
㎏/㎠ |
20 x 50 (D) |
SNCM |
| SHR 50-1002 |
50ℓ x 2 |
100 ℃ |
200 ㎏/㎠ |
20 x 50 (D) |
SNCM |
| SHR 50-1003 |
50 ℓ x 3 |
100 ℃ |
200 ㎏/㎠ |
20 x 50 (D) |
SNCM |
|
| |
| * SHS 75 Series |
| Series |
Liner Type |
Temperature |
Pressure |
View Zone |
Material |
| SHR 75-1001 |
75ℓ |
100 ℃ |
200
㎏/㎠ |
20 x 50 (D) |
SNCM |
| SHR 10-1002 |
75ℓ x 2 |
100 ℃ |
200 ㎏/㎠ |
20 x 50 (D) |
SNCM |
| SHR 10-1003 |
75ℓ x 3 |
100 ℃ |
200 ㎏/㎠ |
20 x 50 (D) |
SNCM |
|
| |
| * SHS 100 Series |
| Series |
Liner Type |
Temperature |
Pressure |
View Zone |
Material |
| SHR 100-1001 |
100ℓ |
100 ℃ |
200
㎏/㎠ |
20 x 50 (D) |
SNCM |
| SHR 100-1002 |
100ℓ x 2 |
100 ℃ |
200 ㎏/㎠ |
20 x 50 (D) |
SNCM |
| SHR 100-1003 |
100 ℓ x 3 |
100 ℃ |
200 ㎏/㎠ |
20 x 50 (D) |
SNCM |
|
* Double electrical terminal can be connected.
*Sight glass is made from quartz, tempered glass, polycarbonate, or sapphire. |
| Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
