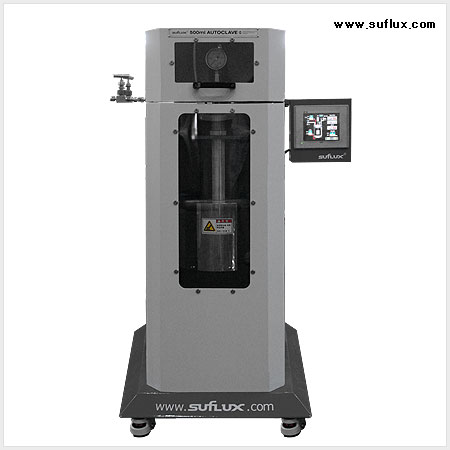

| HSR1 is 1ℓ reactor, suitable for various samples used in laboratory, and installed agitator to accelerate reaction. HSR1 is made from stainless steel, and vessel is easily removable. We can also apply SUS liner / Teflon liner for according to purpose of research and corrosion resistance. Nozzle basically consists of injection line, emission line, safe vent and thermocouple. Magnetic bar and There are multiple options such as deep tube for gas injection during the process, and cooling coil for rapid cooling. |
|
| |
|
| |
 Agitator Sturcture |
 |
| |
| Dimension |
| Working Capacity |
1ℓ (Inside size :
φ
76 ㎜ X 288 ㎜) |
| Working Temp. |
~ 200 ℃ (for PTFE(inside) vessel) |
| Material |
SUS304 (outside) + PTFE (inside) |
| Closure Type |
Bolt Closure |
| Working
Pressure |
20 ㎏/㎠ |
| Magnedrive(Agitator) |
Magnedrive |
| MD Rotational Speed |
~450 rpm |
| Impeller & Shaft |
Teflon Coating |
| Impeller |
Pitched Turbine Blade Type |
| Heater capacity |
2.5 kw |
| Dimension |
440 (W) x 750 (D) x 1,200(H) ㎜ |
|
| |
| Features of HSR1 |
| Safety |
• Design and manufacture according to ASME U1, U2 pressure vessel standard
• Safety and accuracy by double control system for pressure.
• Ensure safety and accuracy by double pressure control system.
• Ensure safety and accuracy by double pressure control system. |
| Convenience |
• Compact workspace is compatible with various environmental conditions.
• Control system controls all operations after putting material.
• Convenient cleaning by easy assembly / disassembly |
| Control System |
• Convenient touch screen
• Accurate testing by automatic system |
 |
|
| |
| Specification |
| * HSR1 TO Series |
| Series |
Temperature |
Pressure |
Liner Type |
Seal Type |
| HSR1000-TOI |
150 ℃ |
20
㎏/㎠ |
Teflon Liner |
O-ring |
| HSR1000-TOL |
180 ℃ |
20 ㎏/㎠ |
Teflon Liner |
O-ring |
| HSR1000-TOS |
200 ℃ |
20 ㎏/㎠ |
Teflon Liner |
O-ring |
|
* HSR1-TO series is made from Teflon Liner because of corrosion
* Impeller and Thermowell processed Teflon Coating |
| |
| * HSR1 TT Series |
| Series |
Temperature |
Pressure |
Liner Type |
Seal Type |
| HSR1000-TTI |
150 ℃ |
20
㎏/㎠ |
Teflon Liner |
Teflon |
| HSR1000-TTL |
180 ℃ |
20 ㎏/㎠ |
Teflon Liner |
Teflon |
| HSR1000-TTS |
200 ℃ |
20 ㎏/㎠ |
Teflon Liner |
Teflon |
|
* HSR1-TS series has no influences of corrosion, and using SUS liner for easy assembly/disassembly.
*Impeller and Thermowell processed Teflon Coating |
| |
| * HSR1 SM Series |
| Series |
Temperature |
Pressure |
Liner Type |
Seal Type |
| HSR1000-SMI |
150 ℃ |
20
㎏/㎠ |
SUS Liner |
Metal |
| HSR1000-SML |
180 ℃ |
20 ㎏/㎠ |
SUS Liner |
Metal |
| HSR1000-SMS |
200 ℃ |
20 ㎏/㎠ |
SUS Liner |
Metal |
|
* HSR1-SM series has corrosion resistance, and using SUS liner for easy assembly/disassembly.
* Apply torque value by torque wrench |
| |
| Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
