Reactor & Special Pressure Vessel - QC series [QC Y]

PRINT

Overview    QC Q    QC P    QC Y    QC C

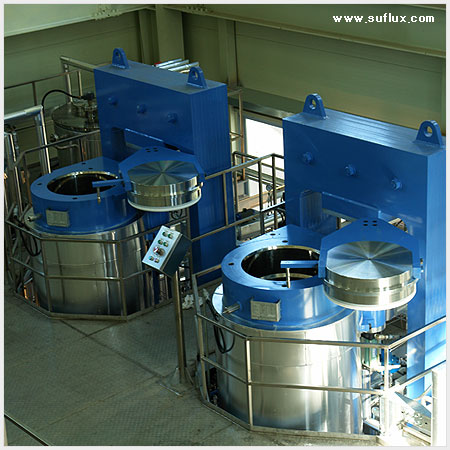

QC Ymodel is Yoke Frame type. After vessel cover is closed, maintain pressure by the power of frame. Frame is made of Carbon Steel considering the strength. Pressure vessel is made of Stainless Steel having strong corrosion resistance. Vessel contents inlet and outlet is very easy and can open or close frequently. With hydraulic/ air pressure cylinder, pressure vessel cover can and Yoke frame works automatically. It is mainly used in supercritical or super high pressure equipment which needs high pressure.     Structure of QC (Yoke Frame type)   Dimension Closure Type Yoke Frame Max. Design Pressure 7000 ㎏/㎠ Max. Design Temperature 200 ℃ Seal Type U-packing Material Stainless Steel   Features of QC Y • Super high pressure (ex, Isostatic Press) • Pressure maintains through Yoke Frame • Inner material and seal type matches different specification • Inlet/outlet or stirring device is optional   Specification * QC Y 100 Series Series Max. Temperature Volume Max. Pressure Seal Material  QC Y-100-0.5 100 ℃ 0.5ℓ 1,000 ㎏/㎠ Urethane  QC Y-100-1 100 ℃ 1ℓ 1,000 ㎏/㎠ Urethane  QC Y-100-10 100 ℃ 10ℓ 1,000 ㎏/㎠ Urethane  QC Y-100-50 100 ℃ 50ℓ 1,000 ㎏/㎠ Urethane   * QC Y 150 Series Series Max. Temperature Volume Max. Pressure Seal Material  QC Y-150-0.5 150 ℃ 0.5ℓ 1,000 ㎏/㎠ PTFE  QC Y-150-1 150 ℃ 1ℓ 1,000 ㎏/㎠ PTFE  QC Y-150-10 150 ℃ 10ℓ 1,000 ㎏/㎠ PTFE  QC Y-150-50 150 ℃ 50ℓ 1,000 ㎏/㎠ PTFE * PTFE, mostly called Teflon has strong thermal resistance and rub resistance   * QC Y 200 Series Series Max. Temperature Volume Max. Pressure Seal Material  QC Y-200-0.5 200 ℃ 0.5ℓ 1,000 ㎏/㎠ UHMWPE  QC Y-200-1 200 ℃ 1ℓ 1,000 ㎏/㎠ UHMWPE  QC Y-200-10 200 ℃ 10ℓ 1,000 ㎏/㎠ UHMWPE  QC Y-200-50 200 ℃ 50ℓ 1,000 ㎏/㎠ UHMWPE * UHMWPE (Ultra-high-molecular-weight polyethylene) strength is similar with PTFE having excellent thermal resistance and flexibility.   Please contact our sales team to inquire about other specification   Technical sales team : +82-42-931-6100 (Ext. 1)
