| QC P model is Quick Pin Closure Pressure Vessel. After vessel cover is closed, fix pin to maintain pressure. It can be operated manually without any tools. So it is widely used in industrial equipments in super high pressure. There is O-ring inside the vessel body to endure high pressure. Material can be selected according to different temperature. |
|
| |
|
| |
 Structure of QC (Quick Pin Closure Pressure Vessel) |
 |
| |
| Dimension |
| Closure Type |

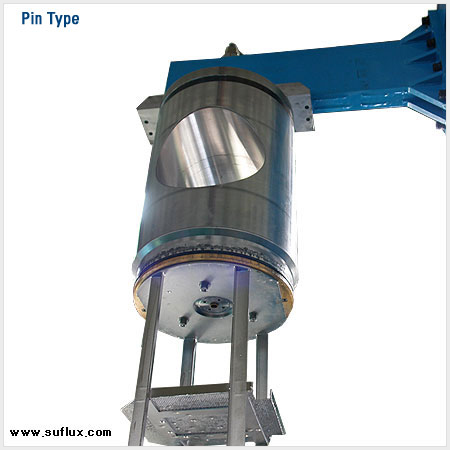

Pin Type |
| Max. Design Pressure |
7000 ㎏/㎠ |
| Max. Design Temperature |
200 ℃ |
| Seal Type |
O-ring |
| Material |
Stainless Steel |
|
| |
| Features of QC P |
• Super high pressure (ex, Isostatic Press)
• Open and close easily through pin
• Special material is also available
• Inlet/outlet port or stirring device is optional |
| |
| Specification |
| * QC P 100 Series |
| Series |
Max. Temperature |
Volume |
Max. Pressure |
Seal Material |
| QC P-100-0.5 |
100 ℃ |
0.5ℓ |
7,000 ㎏/㎠ |
Silicon |
| QC P-100-1 |
100 ℃ |
1ℓ |
7,000 ㎏/㎠ |
Silicon |
| QC P-100-10 |
100 ℃ |
10ℓ |
7,000 ㎏/㎠ |
Silicon |
| QC P-100-20 |
100 ℃ |
20ℓ |
7,000 ㎏/㎠ |
Silicon |
|
| |
| * QC P 200 Series |
| Series |
Max. Temperature |
Volume |
Max. Pressure |
Seal Material |
| QC P-200-0.5 |
200 ℃ |
0.5ℓ |
7,000 ㎏/㎠ |
Viton |
| QC P-200-1 |
200 ℃ |
1ℓ |
7,000 ㎏/㎠ |
Viton |
| QC P-200-10 |
200 ℃ |
10ℓ |
7,000 ㎏/㎠ |
Viton |
| QC P-200-20 |
200 ℃ |
20ℓ |
7,000 ㎏/㎠ |
Viton |
|
| * Viton has excellent thermal resistance and chemical resistance.
|
| |
| Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
