Industrial & Large Pressure Vessel - SVP series [SVP 950]

PRINT

Overview    SVP 900    SVP 950

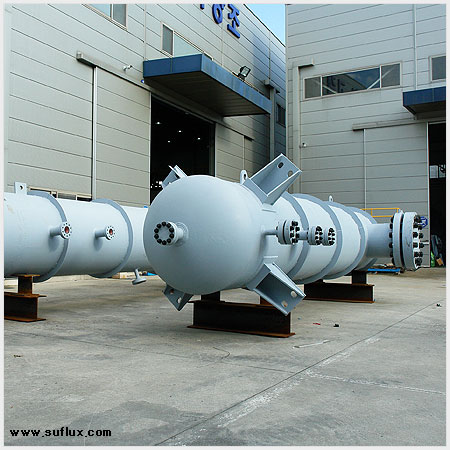

SVP 950 Model, mostly used for steam generators in nuclear power plants, is large volume tank containing fluid in high pressure and high temperature. The Max. inner volume reaches 5,000L and can withstand Max. pressure 200 ㎏/㎠, 350℃. Considering the strength of the base material, this model uses special steel, also uses special material and ceramic coating for inner fluid resistance. Metal Gasket is used to prevent leaking in high pressure and high temperature. Ilshin Autoclave always takes safety as an overriding consideration and designs injection of fluid at the inlet connection and the size is optional. All the equipments of Ilshin Autoclave are designed by ASME CODE and obtained certification of KS, JIS to ensure the safety.     Dimension Internal Capacity 5,000 (5㎥) Internal Dia φ 950 x 7,100 ㎜ Working Pressure ~ 200 ㎏/㎠ Temperature ~ 350 ℃ Closure Type Bolt Type   Features of SVP 950 • Designed according to ASME UI, U2 • Accredited by Industrial Safety Corporation and Korea Gas Safety corporation • Different materials according to inner fluid • Various options for different requests • Used as Gas storage tank in power plants   Specification * SVP 950 - OS Series Series Internal Diameter Length Max. Pressure Max. Temperature Seal Type  SVP-950-OSI φ 950 8,000 ㎜ 150 ㎏/㎠ 150 ℃ O-ring/ Teflon  SVP-950-OSL φ 950 8,000 ㎜ 150 ㎏/㎠ 200 ℃ O-ring/ Teflon  SVP-950-OSS φ 950 8,000 ㎜ 200 ㎏/㎠ 150 ℃ O-ring/ Teflon  SVP-950-OSH φ 950 8,000 ㎜ 200 ㎏/㎠ 200 ℃ O-ring/ Teflon   * SVP 950 - MS Series Series Main Vessel Volume Length Max. Pressure Max. Temperature Seal Type  SVP-950-MSI φ 900 8,000 ㎜ 150 ㎏/㎠ 300 ℃ Metal  SVP-950-MSL φ 900 8,000 ㎜ 150 ㎏/㎠ 350 ℃ Metal  SVP-950-MSS φ 900 8,000 ㎜ 200 ㎏/㎠ 300 ℃ Metal  SVP-950-MSH φ 900 8,000 ㎜ 200 ㎏/㎠ 350 ℃ Metal   Please contact our sales team to inquire about other specification   Technical sales team : +82-42-931-6100 (Ext. 1)
