Home > System > Pressure Vessel > Industrial & Large Pressure Vessel > SVP series > SVP 900

Pressure Vessel

Industrial & Large Pressure Vessel - SVP series [SVP 900]
  PRINT

     Overview    SVP 900    SVP 950

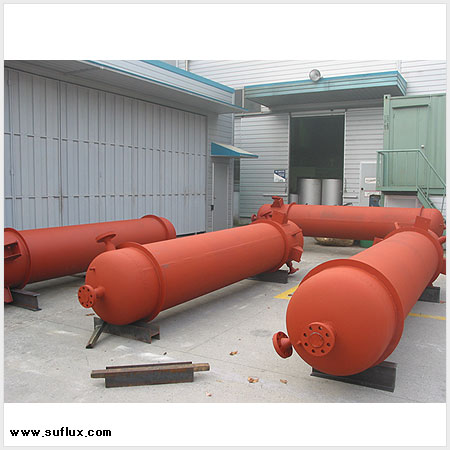

SVP 900 Model, mostly used for steam generators in nuclear power plants, is large volume tank containing fluid in high pressure and high temperature. The Max. inner volume reaches 4,300L and can withstand Max. pressure 200㎏/㎠, 350℃. Considering the strength of the base material, this model uses special steel , also uses special material and ceramic coating for inner fluid resistance. Metal Gasket is used to prevent leaking in high pressure and high temperature. Ilshin Autoclave always takes safety as an overriding consideration and designs injection of fluid at the inlet connection and the size is optional. All the equipments of Ilshin Autoclave are designed by ASME CODE and obtained certification of KS, JIS to ensure the safety.


Dimension
Internal Capacity 4,300 (4.3 ㎥ )
Internal Dia φ 900 x 8,000 ㎜
Working Pressure ~ 200 ㎏/㎠
Temperature ~ 350 ℃
Closure Type Bolt Type

Features of SVP 900
• Designed according to ASME UI, U2
• Accredited by Industrial Safety Corporation and Korea Gas Safety corporation
• Different materials according to inner fluid
• Various options for different requests
• Used as Gas storage tank in power plants

Specification
* SVP 900 - OS Series
Series Internal
Diameter
Length Max.
Pressure
Max.
Temperature
Seal Type
 SVP-900-OSI φ 900 8,000 ㎜ 150 ㎏/㎠ 150 ℃ O-ring/ Teflon
 SVP-900-OSL φ 900 8,000 ㎜ 150 ㎏/㎠ 200 ℃ O-ring/ Teflon
 SVP-900-OSS φ 900 8,000 ㎜ 200 ㎏/㎠ 150 ℃ O-ring/ Teflon
 SVP-900-OSH φ 900 8,000 ㎜ 200 ㎏/㎠ 200 ℃ O-ring/ Teflon

* SVP 900 - MS Series
Series Internal
Diameter
Length Max.
Pressure
Max.
Temperature
Seal Type
 SVP-900-MSI φ 900 8,000 ㎜ 150 ㎏/㎠ 300 ℃ Metal
 SVP-900-MSL φ 900 8,000 ㎜ 150 ㎏/㎠ 350 ℃ Metal
 SVP-900-MSS φ 900 8,000 ㎜ 200 ㎏/㎠ 300 ℃ Metal
 SVP-900-MSH φ 900 8,000 ㎜ 200 ㎏/㎠ 350 ℃ Metal

Please contact our sales team to inquire about other specification
  Technical sales team : +82-42-931-6100 (Ext. 1)
