Pressure Tester

PF series (Rupture Tester) - PFM

PRINT

Overview    PFS    PFM    PFH

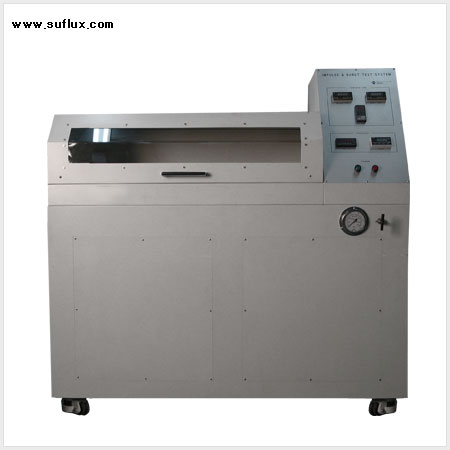

Rupture and fatigue tester PFM model can measure the limit value of rupture and fatigue of pipe, hydraulic hose and tube. It gives a test whether the test piece is destruction, fragment or leakage. Through repeated pressurizing and reducing pressure irregularly, it can measure the limit of fatigue. Ilshin Autoclave Co., Ltd obtains ASME stamps ("U1", "U2", "S") and all the pressure vessel designs according to the regulation of ASME. Pressure vessels can be produced as the size of test piece. There are multiple options of pressure until 500kg/. For pressure's dual check, digital pressure gauge and analogue pressure gauge are attached. Multiple options can be selected by different use, please refer to Options & Accessories for more information.     Dimension Dimension 180 (W) x 1,100(D) x 850(H) ㎜ Working Pressure ~ 1,500 ㎏/㎠ Temperature 300 ℃ Flow Rate Max. 2ℓ/min Pump Type Single Acting, Single/Double Air Drive Pump (Air Port) Min. 5 ㎏/㎠ (1 /4' NPT)   Features of PFM Operation convenience • Analog pressure gauge to check pressure accurately • Simple design to make operation easily Safety • Safety valve for double control • Special manufacture is possible   Specification * PFM W Series Series Max. Pressure Outlet Port Pump  PFM-W500 500 / 1/4 " Lock Fitting Single Acting, Single/Double Air Drive  PFM-W700 700 / 1/4 " Lock Fitting Single Acting, Single/Double Air Drive  PFM-W1000 1000 / 1/4 " Lock Fitting Single Acting, Single/Double Air Drive * For PFM W, pressurizing with liquid of water or oil.   * PFM G Series Series Max. Pressure Outlet Port Pump  PFM-G500 500 / 1/4 " Lock Fitting Single Acting, Single/Double Air Drive  PFM-G700 700 / 1/4 " Lock Fitting Single Acting, Single/Double Air Drive  PFM-G1000 1000 / 1/4 " Lock Fitting Single Acting, Single/Double Air Drive * For PFM G, pressurizing with Nitrogen or inert gas.   Please contact our sales team to inquire about other specification   Technical sales team : +82-42-931-6100 (Ext. 1)
