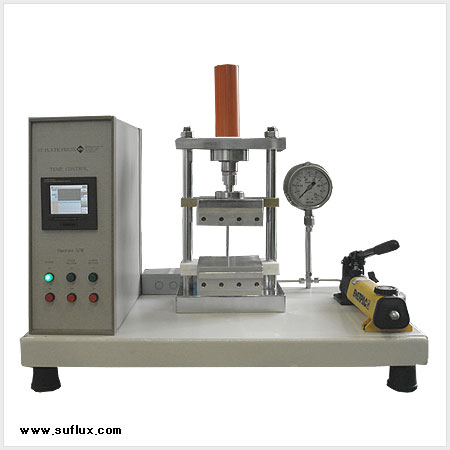

| HP5 is a hydraulic pressure, used for raising temperature(Max.250℃ ) and compression(Max.5t) at the same time. HP5 consists of pressure gauge for accurate pressure measuring(0.5%) and hand pump to generate a pressure. The plate is made from aluminum for thermal conduction and we also installed cartridge heater and thermocouple for accurate temperature measuring and controlling. After pressurizing, a cylinder can be returned by a spring in the cylinder. Automatic hydraulic valve controls operating speed accurately. Simple equipment composition enables easy and convenient operation and maintenance. Small equipment size is available to small workspace.
Load cell for accurate measuring, spacer for adjusting height and touch screen control system can be applied optionally. |
|
| |
|
| |
 Equipment parts |
 |
| |
| Dimension |
| Max.Load |
5 ton |
| Dimension |
850 (W) x 650 (H) x 450 (D) ㎜ |
| Max. Temperature |
~ 250℃ |
| Cylinder Type
|
Single acting cylinder |
| Cylinder Effective Area |
15.2 ㎠ |
| Cylinder Capacity |
10 ton (@700 bar) |
| Cylinder Stroke |
50~200 ㎜ |
| Heater Capacity |
2.8 kw |
|
| |
| Features of HP5 |
| Accurate controlling |
• Max. heating temperature : 250℃ & accurate temperature controlling by a thermocouple
• Accurate operating speed controlling by automatic hydraulic valve
• Pressure gauge to measure pressure accurately(0.5%) |
| Simple composition and easy operation |
• Rapid temperature rising by using high heat conductivity material for hot plate
• Convenient maintenance due to simple equipment composition
• Adjusting a distance between press and material according to material height
• Restore cylinder position by a spring
• Fewer noise and dusts. |
| Durability |
• Strong frame and qualified hydraulic parts
• Disconnection device in heater prevent an overheating |
| Control system |
• Applying touch screen is available
• Process data saving and checking |
 |
|
| |
| Specification |
| * HP5 - 100 Series |
| Series |
Plate Size |
Stroke |
Max.Pressure |
Max.Temp. |
Cylinder
Effective Area |
| HP-5-100i |
100 x 100 ㎜ |
50 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
| HP-5-100L |
100 x 100 ㎜ |
100 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
| HP-5-100S |
100 x 100 ㎜ |
150 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
| HP-5-100H |
100 x 100 ㎜ |
200 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
|
| |
| * HP5 - 150 Series |
| Series |
Plate Size |
Stroke |
Max.Pressure |
Max.Temp. |
Cylinder
Effective Area |
| HP-5-150i |
150 x 150 ㎜ |
50 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
| HP-5-150L |
150 x 150 ㎜ |
100 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
| HP-5-150S |
150 x 150 ㎜ |
150 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
| HP-5-150H |
150 x 150 ㎜ |
200 ㎜ |
350 kg/㎠ |
250 ℃ |
15.2 ㎠ |
|
* Appropriate mold size for material types
* Adjusting height by a stroke |
| Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
