When material(Fluid) passes orifice module under ultra high pressure condition, supersonics speed is formed by a rapid decrease in pressure. At this very moment, the material can be cell destruction, atomization, emulsion, dispersion, and liposome by impact, cavitation and turbulence shear stress of particle, and then get nano size.
Flow rate at different pressure
Pressure(Bar)
500
1000
1500
2000
2500
Flow rate(m/sec)
313
442
542
626
700
Nano Disperser

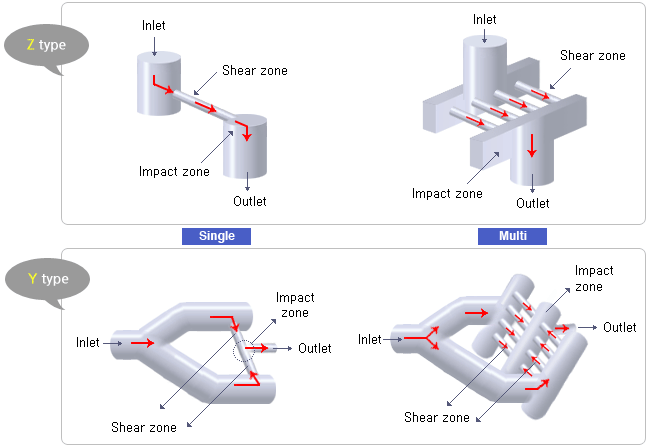

Interaction Chamber Type
* Various application according to material of orifice
- Diamond, ceramic etc.
* Proper orifice size is important
- According to product, demanded output
Safety is paramount for Ilshin's equipment. Ilshin always takes account of safety from design to manufacture. The picture above shows the momentary Max. stress value while plunger working. In order to decrease the Max. stress value, Ilshin changes the structure and material to disperse the stress concentration and ensure safety.
