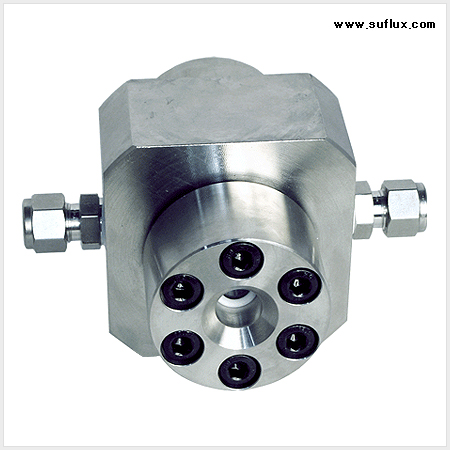

| VCV H model is lf View Cell Pressure Vessel which can observe inner reaction horizontally.. The basic material is chemically resistant Stainless Steel. Its components disassembling and cleaning is very easy. Also nozzle is added for inner flow. |
|
| |
|
| |
 Structure of SV (View Cell Pressure Vessel) |
 |
| |
| Dimension |
| Working Capacity |
50㎖ |
| Internal Dia |
φ
110 x 147 ㎜ |
| Max. Design Pressure |
600 ㎏/㎠ |
| Max. Design Temperature |
250℃ |
| Closure Type |
Bolt Type |
|
| |
| Features of VCV H |
• Horizontal type
• Mainly used in lab or research institute
• Quartz, sapphire, reinforced glass to observe
• Inner camera to record and watch video |
| |
| Specification |
| * VCV H - 90 Series |
| Series |
Max. Pressure |
Max. Temperature |
Seal Type |
| VCV H-90-100 |
100 ㎏/㎠ |
90 ℃ |
우레탄 |
| VCV H-90-300 |
300 ㎏/㎠ |
90 ℃ |
우레탄 |
| VCV H-90-600 |
600 ㎏/㎠ |
90 ℃ |
우레탄 |
|
| |
| * VCV H - 200 Series |
| Series |
Max. Pressure |
Max. Temperature |
Seal Type |
| VCV H-200-100 |
100 ㎏/㎠ |
200 ℃ |
O-ring |
| VCV H-200-300 |
300 ㎏/㎠ |
200 ℃ |
O-ring |
| VCV H-200-600 |
600 ㎏/㎠ |
200 ℃ |
O-ring |
|
| |
| * VCV H - 250 Series |
| Series |
Max. Pressure |
Max. Temperature |
Seal Type |
| VCV H-200-100 |
100 ㎏/㎠ |
200 ℃ |
O-ring |
| VCV H-200-300 |
300 ㎏/㎠ |
200 ℃ |
O-ring |
| VCV H-200-600 |
600 ㎏/㎠ |
200 ℃ |
O-ring |
|
| |
| Please contact our sales team to inquire about other specification |
| |
Technical sales team : +82-42-931-6100 (Ext. 1) |
|
|
