Special Purpose Reactor - Polymerization Reactor [PMR 100]

PRINT

Overview   PMR 10   PMR 50   PMR 100   PMR 1000

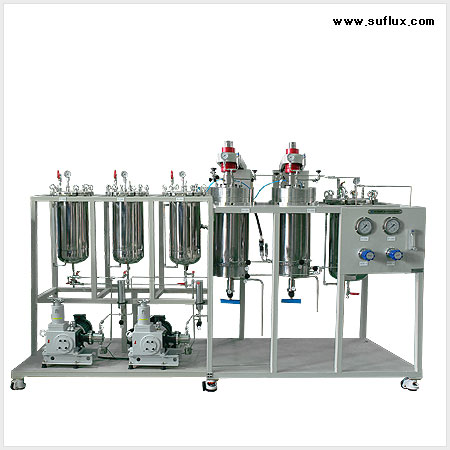

PMR 100 is 100ℓ reactor, used for continuous polymerization process, and manufactured to automatically inject and transfer samples because hard to open / close cover due to a heavy weight of the equipment. There are many other components for polymerization such as mixture reactor and pump.This composition facilitates a phased polymerization and handles a certain amount at one time. PMR 100 is made from stainless steel or carbon steel, and the inside is made from double junction nickel. The cover of vessel is fixed, and samples are putted through pipes. Nozzle basically consists of injection line, emission line, safe vent and thermocouple. Magnetic bar and there are multiple options such as deep tube for gas injection during the process, and cooling coil for rapid cooling.     Dimension Working Capacity 100ℓ (Inside size : φ 430 ㎜ X 1,040 ㎜) Working Temp. ~ 130 ℃ Working Pressure 5 ㎏/㎠ Process Type Continuous Type Material SUS316 Main Seal PTFE(sheets gasket seal) Closure Type Bolt Closure Agitator Magnedrive MD Rotational Control Inverter Control Impeller Propeller(2ea) x Anchor(1ea) * Main reactor * Oil Tank - 1set * Mixing Vessel - 1set * Impeller & Shaft   Features of PMR 100 Safety • Design and manufacture according to ASME U1, U2 pressure vessel standard • Safety and accuracy by double control system for pressure. • Assure safety and accuracy by double pressure control system. • Continuous equipment management by alarm list record. Convenience • Compact workspace is compatible with various environmental conditions. • Control system controls all operations after putting material. • Convenient cleaning by easy assembly / disassembly Control System • Convenient touch screen • Accurate testing by automatic system   Specification * PMR 100 Series X Series Liner Type Temperature Pressure Max. Tank Volume Material  PMR100-1501 100ℓ 150 ℃ 10 ㎏/㎠ 150ℓ SUS 316 (+ Ni)  PMR100-1502 100ℓ x 2 150 ℃ 10 ㎏/㎠ 200ℓ SUS 316 (+ Ni)   * PMR 200 Series Series Liner Type Temperature Pressure Max. Tank Volume Material  PMR200-1501 200ℓ 150 ℃ 10 ㎏/㎠ 250ℓ SUS 316 (+ Ni)  PMR200-1502 200ℓ x 2 150 ℃ 10 ㎏/㎠ 400ℓ SUS 316 (+ Ni)   * PMR 300 Series Series Liner Type Temperature Pressure Max. Tank Volume Material  PMR300-1501 300ℓ 150 ℃ 10 ㎏/㎠ 400ℓ SUS 316 (+ Ni)  PMR300-1502 300ℓ x 2 150 ℃ 10 ㎏/㎠ 500ℓ SUS 316 (+ Ni)   * PMR 500 Series Series Liner Type Temperature Pressure Max. Tank Volume Material  PMR500-1501 500ℓ 150 ℃ 10 ㎏/㎠ 600ℓ SUS 316 (+ Ni)  PMR500-1502 500ℓ x 2 150 ℃ 10 ㎏/㎠ 700ℓ SUS 316 (+ Ni) * Double junction nickel can be used for corrosion resistance. *Impeller and Thermowell can apply Teflon / Meta Coating. Please contact our sales team to inquire about other specification   Technical sales team : +82-42-931-6100 (Ext. 1)
