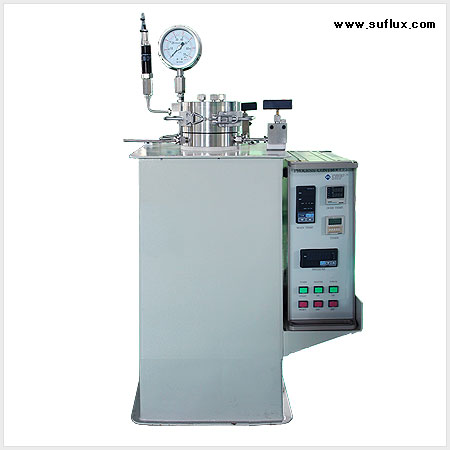

CT 200 is used for curing of small sized concrete, Portland cement, and ALC(Autoclaved Lightweight Concrete) in high pressure and temperature, to make high strength cement or foam concrete. Small sample tests are available by small workspace.
CT 200 is made from stainless steel for chemical resistance, and using automatic opening / closing cover. It uses multi-line Pressure System for safety and accurate air tightness during process. Pipe line consists of air pump, air vent, safety vent and thermocouple. Additional options are also available such as cooling coil for rapid cooling and automatic emission line for constant temperature and pressure.
Dimension
Working
Vessel Dia
Ф 200 ㎜ x 200 ㎜
Inside Vessel Volume
6ℓ
Working Temperature
~ 250 ℃
Working
Pressure
~ 40 ㎏/㎠
Temp.
& Pressure Deviation
±1.5 (%)
Electronic Control
PID Control
Dimension
800 (W) X 550 (D) X 1,300(H)
Features of Curing Autoclave
Safety
• Design and manufacture according to ASME, KGS and KOSHA
• Multi-line Pressure Control System for safety
• Continuous management by alarm list record
Convenience
• Controlling system controls all operations after putting material
• Convenient cleaning by easy assembly / disassembly
Controlling system
• Control system using touch screen
• Accurate testing by automatic system
Features of CT 200
• Safe manufacturing according to ASME code
• Corrosion resistance material : Stainless Steel
• Automatic opening / closing cover
• Electropolishing inside/outside
• Programmable temp. control
• Many safety devices such as digital / analog pressure gauge
Specification
* CT 200 - 200 Series
Series
Working Vessel
Internal Diameter
Working Vessel
Distance
Temperature
Pressure
CT200-200-150L
200
㎜
200
㎜
150 ℃
20 ㎏/㎠
CT200-200-150H
200
㎜
200
㎜
150 ℃
40
㎏/㎠
CT200-200-250L
200
㎜
200
㎜
250 ℃
20 ㎏/㎠
CT200-200-250H
200
㎜
200
㎜
250 ℃
40
㎏/㎠
* CT 200 - 300 Series
Series
Working Vessel
Internal Diameter
Working Vessel
Distance
Temperature
Pressure
CT200-300-150L
200
㎜
300
㎜
150 ℃
20 ㎏/㎠
CT200-300-150H
200
㎜
300
㎜
150 ℃
40
㎏/㎠
CT200-300-250L
200
㎜
300
㎜
250 ℃
20 ㎏/㎠
CT200-300-250H
200
㎜
300
㎜
250 ℃
40
㎏/㎠
* CT 200 - 400 Series
Series
Working Vessel
Internal Diameter
Working Vessel
Distance
Temperature
Pressure
CT200-400-150L
200
㎜
400
㎜
150 ℃
20 ㎏/㎠
CT200-400-150H
200
㎜
400
㎜
150 ℃
40
㎏/㎠
CT200-400-250L
200
㎜
400
㎜
250 ℃
20 ㎏/㎠
CT200-400-250H
200
㎜
400
㎜
250 ℃
40
㎏/㎠
* Design and manufacture according to ASME, KGS and KOSHA
*
PID and PID programmable control is additional option.
* Installing electric regulator such as SSR(Solid State Relay) and TPC(Thyristor Power Control) is additional option.
※ Please contact our sales team to inquire about other specification
